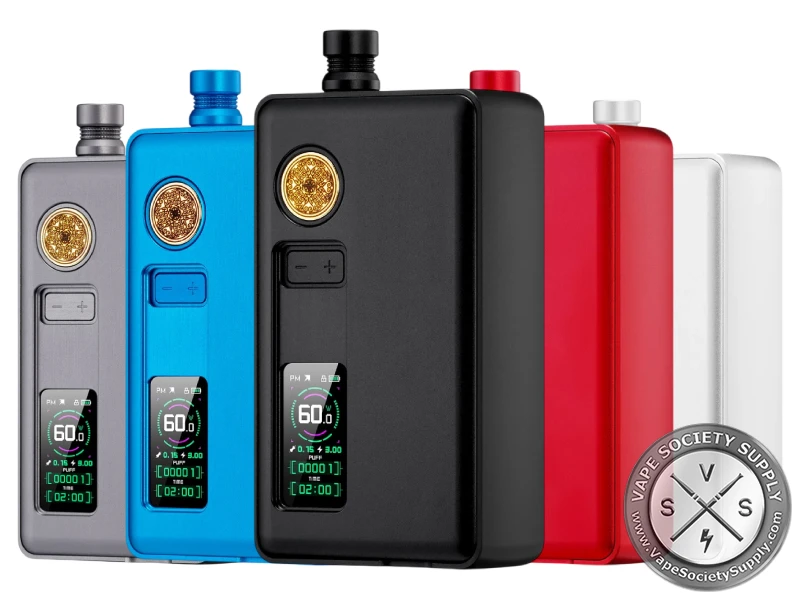

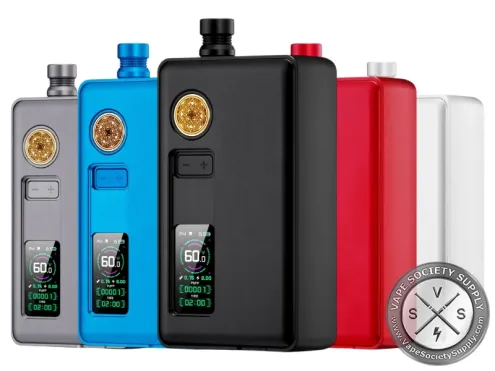

Five dotmod dotAIO V3 kits in gunmetal, royal blue, black, red and silver

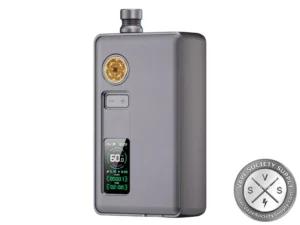

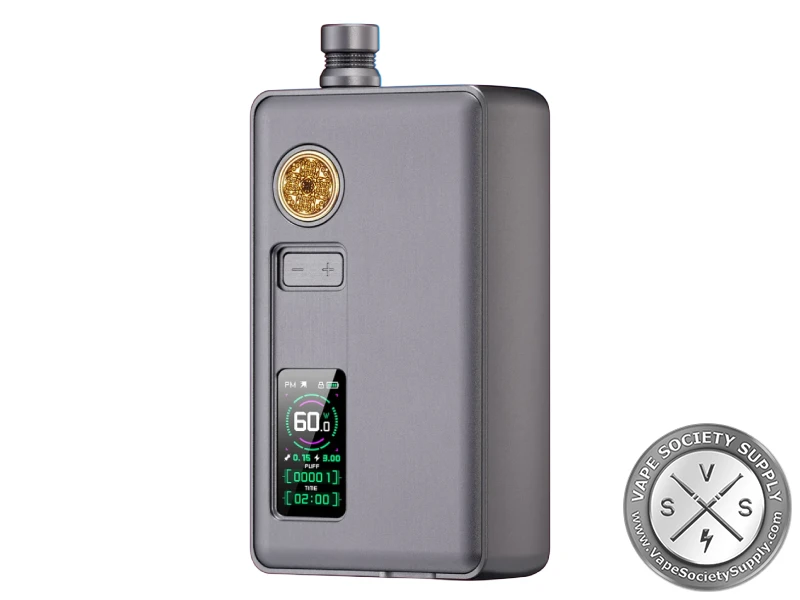

dotmod dotAIO V3 in Gunmetal: gunmetal body, gold power button and color screen

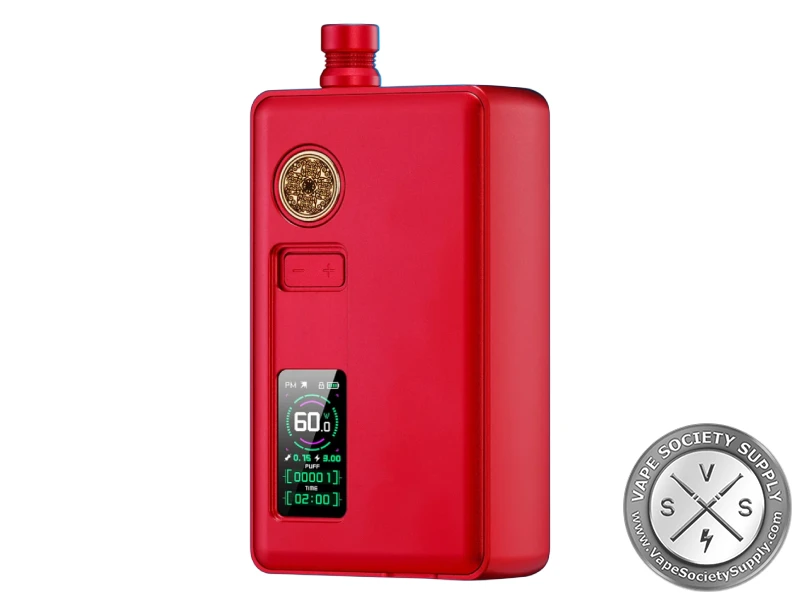

dotmod dotAIO V3 in Red: red body, gold power button and color screen

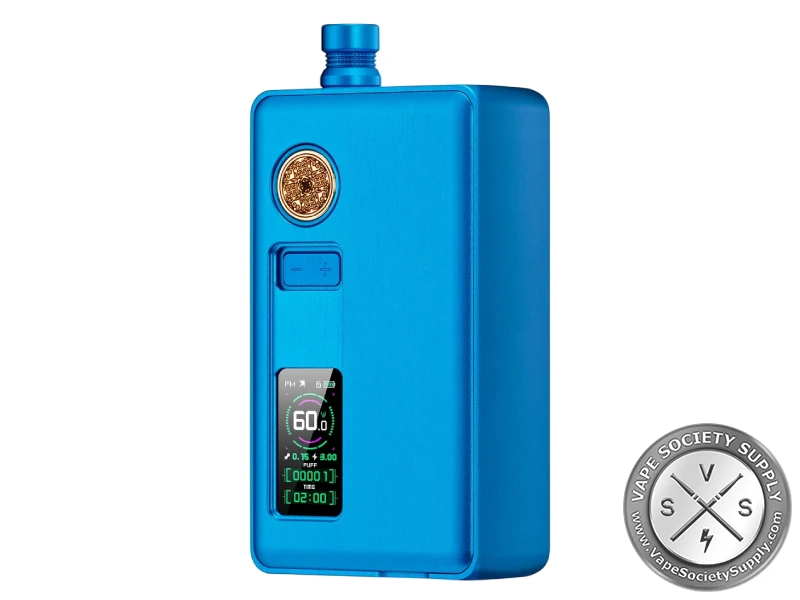

dotmod dotAIO V3 in Royal Blue: royal blue body, gold power button and color screen

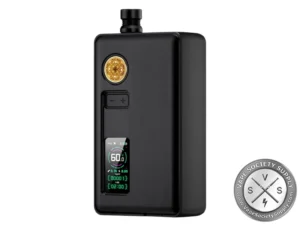

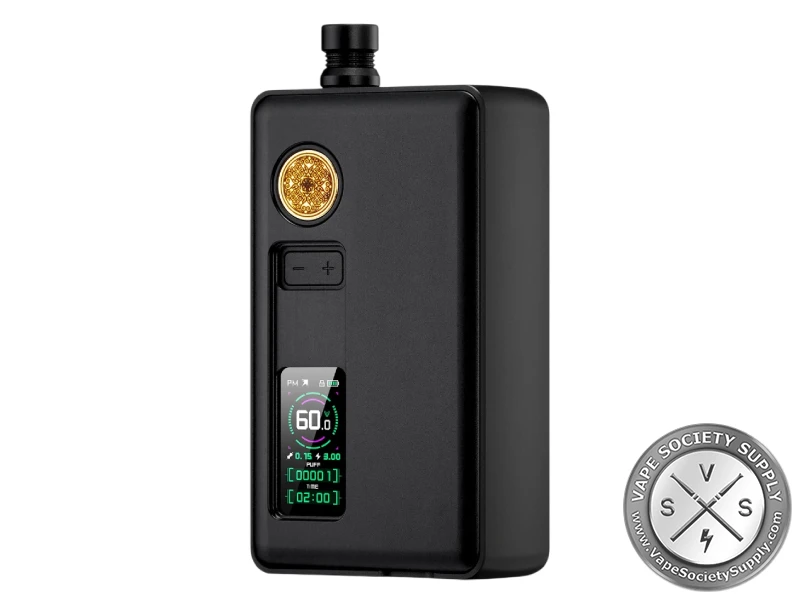

dotmod dotAIO V3 in Black: black body, gold power button and color screen

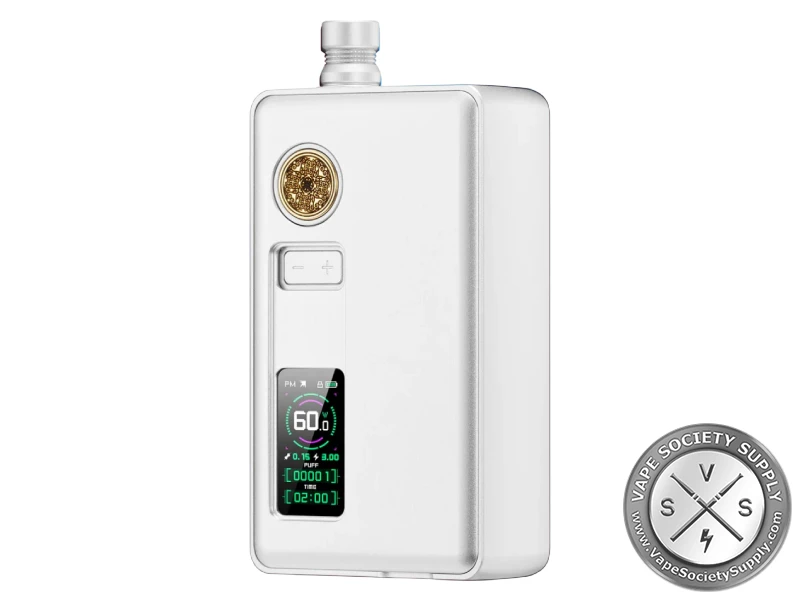

dotmod dotAIO V3 in Silver: pale silver body, gold power button and color screen

dotmod dotAIO V3 80W Pod System

Name: Vape Society Supply
Price range: $$

Brand: DotMod

Original price was: $149.99.Current price is: $119.99.

The dotmod dotAIO V3 80W Pod System is an 18650 all-in-one with 5W to 80W, eight output modes, a 0.96-inch full-color screen for your own GIFs and an aluminum body. A dotAIO V4 tank, a dotAIO Pod and a dotCoil come in the box.

Local Business Pickup Available Choose a nearby PUDO pickup location at checkout.

Description

dotmod dotAIO V3 80W Pod System Review

The dotmod dotAIO V3 80W Pod System is an all-in-one that runs on one 18650 battery (not included) and puts out 5W to 80W in 0.1W steps. It has eight output modes, a 0.96-inch full-color screen that can show your own GIFs and pictures, and an aluminum body with a frame and panels you can swap. A dotAIO V4 tank and a dotAIO Pod come in the box. See more from dotmod or compare other pod systems.

dotAIO V3 Highlights

Up to 80W

The dotmod dotAIO V3 adjusts from 5W to 80W in 0.1W steps, with auto, power, bypass, curve and boost modes plus nickel, titanium and stainless steel temperature control.

Your Own Screen Art

Connect it to a computer over USB-C and add GIFs or JPGs at 80 × 160 pixels for the startup animation, the vaping animation or the background.

Pod or Tank

It takes the 4ml dotAIO V4 tank with dotCoils or a dotAIO Pod with a built-in mesh coil. Both come in the kit.

Swap the Parts

dotmod says the frame, panels, buttons and drip tips can all be changed, and that dotAIO V1 and V2 accessories and third-party RBAs fit.

dotAIO V3 Specs

Device

Battery: one 18650 (not included)
Output: 5–80W, in 0.1W steps
Resistance range: 0.1–3Ω
Modes: auto, power, bypass, curve, boost, temperature control (Ni, Ti, SS)
Temperature range: 100–315°C (200–600°F)
Firing: power button
Screen: 0.96-inch full color; your own GIF and JPG images; 5 display colors, 9 brightness levels, stealth mode
Charging: USB-C, 5V/2A
Body: aluminum, with a removable frame
Size: 88.73 × 45.76 × 23.6mm
Safety: 10-second cut-off, overload (above 35A), short-circuit, resistance, overheat and low-battery warnings

Tank and Pod

In the box: dotAIO V4 tank (4ml) with a dotCoil, and a dotAIO Pod
Pods: dotAIO Pods, 0.2–1.0Ω
Fill: fill port under a silicone plug
Airflow: adjustable airflow control

dotAIO V3 Colors

Options: Black, Gunmetal, Red, Royal Blue, Silver

dotAIO V3 Auto Mode

In auto mode, the dotAIO V3 sets the power from the coil’s resistance, and + and – change it within that range. dotmod’s manual gives these values:

Coil resistance	Auto starts at	Range with + and –
0.10–0.25Ω	70W	5–75W
0.25–0.55Ω	35W	5–40W
0.55–0.85Ω	20W	5–22W
0.85–1.45Ω	16W	5–18W
1.45–3.00Ω	10W	5–12W

dotmod rates the dotAIO Pods at 40W to 60W (0.2Ω), 25W to 40W (0.3Ω), 18W to 22W (0.6Ω) and 12W to 16W (1.0Ω). We sell dotAIO Replacement Pods in 2-packs.

How to Set Up the dotAIO V3

Fit a battery: insert an 18650 matching the + and – marks on the tray, lay the battery ribbon across it, and close the battery door.
Fill the tank: fill through the fill port under the silicone plug, and don’t overfill it.
Fit the tank: with the silicone plug facing out, set the tank on the connector, put the tank door back and tighten the drip tip.
Turn it on: press the power button 5 times quickly.
Pick a mode: press the power button 3 times, move with + and -, and press the power button to select.
Set the airflow: rotate the airflow control for a tighter or looser draw.

Who the dotAIO V3 Is For

The dotmod dotAIO V3 suits vapers who want a pocket all-in-one with a replaceable 18650, up to 80W and temperature control, and a screen they can make their own. For the earlier model with an LCD and up to 75W, see the dotmod dotAIO V2. For a translucent body, see the dotAIO V2 Lite.

Good to know: The dotAIO V3 doesn’t come with a battery. It takes one 18650, sold separately, and charges it in the device over USB-C.

What’s in the dotAIO V3 Kit

dotmod dotAIO V3 device
dotAIO V4 tank
dotAIO Pod
dotCoil
Drip tip and Prism drip tip
Frame set screw (M2×4.5) and 10 screw covers
510 flush nut
Airflow O-ring and 3 O-rings
USB-C cable
User manual and warranty card

The 18650 battery isn’t included.

FAQ

dotmod dotAIO V3 FAQ

What battery does the dotAIO V3 use?

One 18650, sold separately. It charges in the device over USB-C at 5V/2A.

Can I put my own images on the screen?

Yes. Over USB-C it shows up on a computer as a drive called dot, and the first time it needs formatting. Add GIFs or JPGs at 80 × 160 pixels, then pick them under Customization in the settings.

What modes does it have?

Auto, power, bypass, curve, boost and nickel, titanium and stainless steel temperature control. Press the power button 3 times to open the menu.

What do curve and boost do?

Curve lets you set the power for each half second of a puff, up to 10 seconds. Boost works in power mode and adds 5W to 13W (levels 1 to 9) for the first second, then goes back to your set power.
